Introduction

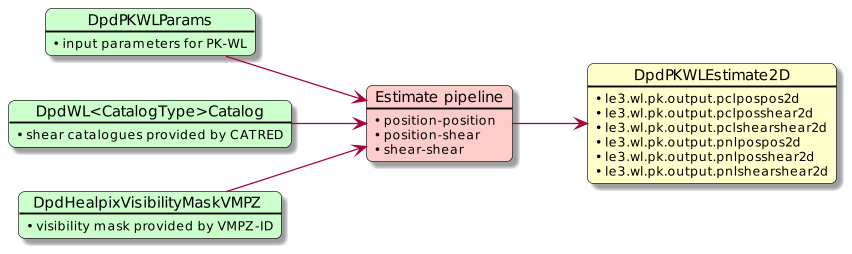

PK-WL produces tomographic angular power spectra (Cl) and noise power spectra (Nl) estimates for position-position, position-shear, and shear-shear. PK-WL also produces the mixing matrix for modelling the partial observation of the sky.

The estimates are obtained from the same input products and using a similar methodology; therefore, they all share the same running parameters, and are collected in a single output product.

The catalogue and mask input products are the outputs of CATRED and VMPZ-ID, respectively.

Input products

Output products

Pipeline LE3_PK_WL_Full_Pipeline

../../../_images/DPDD-PKWLFull2D.png

The pipeline LE3_PK_WL_Full_Pipeline runs all of the pipelines below in one step.

Ports description:

  • input_pos_catalog: Weak lensing position catalogue from VMPZ-ID.

  • input_she_catalog: Weak lensing shear catalogue from VMPZ-ID.

  • options_file: PK-WL parameter product with configuration options (existing example on DPS).

  • input_mask: Visibility masks from VMPZ-ID (parallel).

  • input_coverage: Coverage from VMPZ-ID.

  • input_bins: Tomographic bins from OU-PHZ (parallel).

  • input_mdb: Mission database.

  • output_spectra: Estimated angular power spectra.

  • output_mixingmatrix: Computed mixing matrices for angular power spectra.

  • output_covariance: The jackknife covariance.

These optional pipelines do not need to be run independently if LE3_PK_WL_Full_Pipeline runs successfully.

Pipeline LE3_PK_WL_Maps_Pipeline

../../../_images/DPDD-PKWLMaps2D.png

Position maps and Alms from position catalogues.

Ports description:

  • input_catalog: Weak lensing position catalogue from VMPZ-ID.

  • options_file: PK-WL parameter product with configuration options (existing example on DPS).

  • input_mask: Visibility masks from VMPZ-ID (parallel).

  • input_coverage: Coverage from VMPZ-ID.

  • input_mdb: Mission database.

  • output_maps: Maps for position and visibility.

  • output_alms: Alms for position and visibility.

Pipeline LE3_PK_WL_Maps_She_Pipeline

../../../_images/DPDD-PKWLMapsShe2D.png

Shear maps and Alms from shear catalogues. The ports for LE3_PK_WL_Maps_She_Pipeline are similar to LE3_PK_WL_Maps_Pipeline but there is no input visibility and it requires DpdTomographicBins. Additionally, this pipeline is to be run independently for LensMC and Metacal; the shear estimation method appears in the DpdWLShearCatalog product under Data.ShearCatalogParams.SheEstimationMethod.

Ports description:

  • input_catalog: Weak lensing shear catalogue from VMPZ-ID.

  • options_file: PK-WL parameter product with configuration options (existing example on DPS).

  • input_coverage: Coverage from VMPZ-ID.

  • input_bins: Tomographic bins from OU-PHZ (parallel).

  • input_mdb: Mission database.

  • output_maps: Maps for shear and weight.

  • output_alms: Alms for shear and weight.

Pipeline LE3_PK_WL_Spectra_Pipeline

../../../_images/DPDD-PKWLSpectra2D.png

Estimation of the harmonic-space two-point statistics for cosmic shear, galaxy-galaxy lensing, and angular clustering.

Ports description:

  • input_alms: Alms from the position/she mapping/alms pipelines.

  • output_spectra: Estimated angular power spectra.

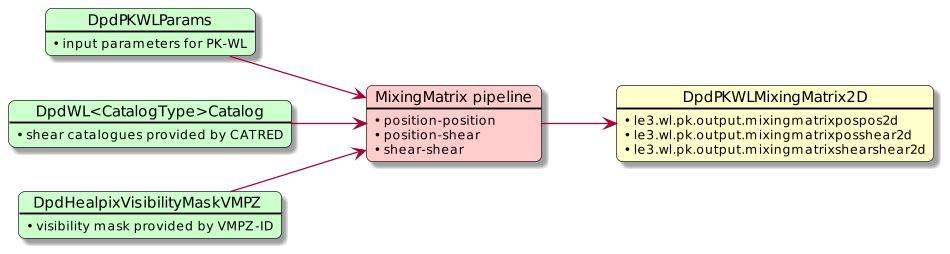

Pipeline LE3_PK_WL_MixingMatrix_Pipeline

../../../_images/DPDD-PKWLMixingMatrix2D.png

Computation of mixing matrices for the estimated angular power spectra.

Ports description:

  • input_alms: Alms for She / Wht and or Pos / Vis.

  • output_mixingmatrix: Computed mixing matrices for angular power spectra.

Pipeline LE3_PK_WL_Regions_Pipeline

../../../_images/DPDD-PKWLRegions2D.png

Regions for Jackknife Covariance LE3_PK_WL_JkCov_Pipeline.

Ports description:

  • input_maps: pos/she maps from LE3_PK_WL_Maps_Pipeline / LE3_PK_WL_Maps_She_Pipeline (parallel).

  • options_file: Dices configuration file (existing example on DPS).

  • output_regions: Regions as input for Jackknife Covariance.

Pipeline LE3_PK_WL_JkCov_Pipeline

../../../_images/DPDD-PKWLJkCov2D.png

Estimation of covariance matrices for the estimated angular power spectra.

Ports description:

  • input_maps: pos/she maps from LE3_PK_WL_Maps_Pipeline / LE3_PK_WL_Maps_She_Pipeline.

  • input_regions: regions from LE3_PK_WL_Regions_Pipeline.

  • options_file: Dices configuration file (existing example on DPS).

  • output_covariance: The jackknife covariance.
