Output Product: E/B modes on small patches

Metadata

Data product name

DpdTwoDMassConvergencePatch

Data product custodian

WLTWODMASS

Name of the Schema file

euc-le3-wl-twodmass-ConvergencePatch.xsd

Last Edited for DPDD Version

1.1

Processing Element(s) creating/using the data product

Creators:

  • LE3_2D_MASS_WL_KS

Consumers:

  • LE3_2D_MASS_WL_KS

Processing function using the data product

  • LE3_2D_MASS_WL_KS

  • Science Working Group

Proposed for inclusion in EAS/SAS

This product is proposed for inclusion in the SAS: Yes

This product is an internal product of SGS.

Data Product Elements

Header

object of type sys:genericHeader

Data

object of type wl2dmass:twoDMassCollectConvergencePatch

QualityFlags

object of type dqc:sqfPlaceHolder

Parameters

object of type ppr:genericKeyValueParameters

Detailed Description of the Data Product

This product contains 2D convergence maps (denoised and noisy), shear maps, noise standard deviation maps, and Monte-Carlo realisations for one or more patches.

This output product contains:

  • a cube map per patch associated to a FITS in [NoisyConvergence xml tag] containing:

    • a data cube (one redshift bin per HDU) containing the E/B convergence modes, the total galaxy weight per pixel, the galaxy density per pixel, the noise standard deviation map (STD), the shear, and the denoised convergence;

    • the Euclid visibility mask projected onto the patch.

  • a Monte-Carlo cube map per patch, per Monte-Carlo realisation, associated to a FITS in [SNRPatch xml tag] containing:

    • a data cube (one redshift bin per HDU) containing the Monte-Carlo realisation of E/B convergence modes.

  • a “NResamples” field to specify the number of samples that were used to compute the STD maps [int]

  • a “McSeed” field to specify the seed of the random number generator [int]

Convergence/shear cube

This FITS file is associated to a structure called NoisyConvergence (to be renamed after DR1). The patch number is given in the filename.

<NoisyConvergence format="le3.wl.2dmass.output.patchconvergence" version="1.0">
  <DataContainer filestatus="PROPOSED">
    <FileName>EUC_LE3_2D-MASS-WL_PATCH0_CARTCONV_20250116T123522.804591Z_2.7.fits</FileName>
  </DataContainer>
</NoisyConvergence>
../../../../_images/le3.wl.2dmass.output.patchconvergence.jpg

Primary HDU:

HDU PRIMARY: header

Name

Description

Value

Keywords

SIMPLE

logical

BITPIX

integer

NAXIS

integer

EXTEND

logical

SHE_SOFT

where the input catalogue is coming from

string

SHE_SEL

where the input catalogue is coming from

string

SOFTNAME

software used to create the product

string

SOFTVERS

software version

string

PROJ

projection used (e.g. TAN)

string

PWIDTH

patch width

double

PIXSIZE

pixel size

double

NITREDSH

number of iterations for reduced shear

integer

STDREDSH

std of gaussian smoothing for reduced shear

double

NITINP

number of iterations for inpainting

integer

NSCINP

number of scales for inpainting

integer

EB_CONSTRAINT

true if constraints applied in E/B mode during inpainting.

logical

ADDBORD

true if borders added for inpainting

logical

DENTYPE

denoising type

string

GAUSSSTD

std of gaussian smoothing

double

FDRVAL

false discovery rate threshold

double

NZBINS

number of redshift bins

integer

ZBINSTRAT

redshift binning strategy (equidist or equipop)

string

BLINDING

Flag that identifies products that have been blinded for scientific analysis

string

Cube extensions:

For the array in HDU (HDU= 1..N, one per redshift bin), the following keywords are specified for each HDU (EXTNAME = “KAPPA_ZBIN_n”):

Header:

HDU KAPPA_ZBIN_n: header

Name

Description

Value

Keywords

XTENSION

string

BITPIX

integer

NAXIS

integer

NAXIS1

integer

NAXIS2

integer

NAXIS3

integer

PCOUNT

integer

GCOUNT

integer

WCSAXES

number of axes in World Coordinate System

integer

CRPIX1

pixel coordinate of reference point in axis1

double

CRPIX2

pixel coordinate of reference point in axis2

double

PC1_1

coordinate transformation matrix element

double

PC1_2

coordinate transformation matrix element

double

PC2_1

coordinate transformation matrix element

double

PC2_2

coordinate transformation matrix element

double

CDELT1

increment at reference point in axis1

double

CDELT2

increment at reference point in axis2

double

CUNIT1

unit of the first coordinate value

string

CUNIT2

unit of the second coordinate value

string

CTYPE1

WCS type of the first coordinate

string

CTYPE2

WCS type of the second coordinate

string

CRVAL1

value at reference point in axis1

double

CRVAL2

value at reference point in axis2

double

LONPOLE

native longitude of the pole

double

LATPOLE

native latitude of the pole

double

RADESYS

equatorial coordinate system

string

EQUINOX

equinox of celestial coordinate system

double

EXTNAME

name of this image extension

string

ZMIN

minimum redshift of the bin

double

ZMAX

maximum redshift of the bin

double

HDU KAPPA_ZBIN_n: 1 array info

Format

Number of Dimensions

Unit

ArrayInfo

-32

3

NA

HDU KAPPA_ZBIN_n: 2 array axes

Name

Projection Algorithm

Type

Unit

AxesList

RA

TAN

RA

deg

DEC

TAN

DEC

deg

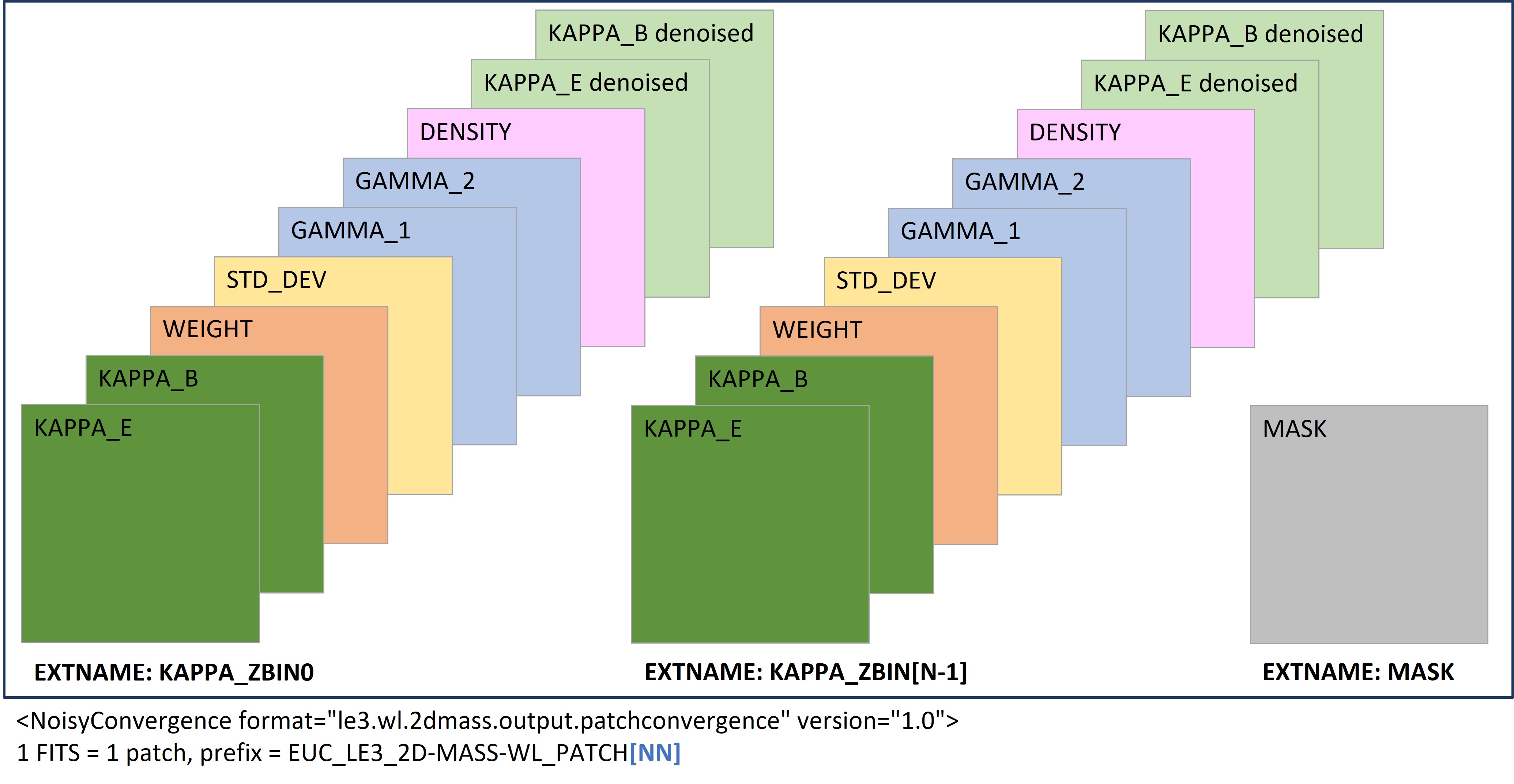

The array contains 9 images in that order:

  • Convergence E mode

  • Convergence B mode

  • Weight map (total galaxy weight per pixel)

  • Noise standard deviation of E and B modes over all NResamples realisations

  • Shear first component

  • Shear second component

  • Density map (number of galaxies per pixel)

  • Convergence E mode (denoised, according to input parameters)

  • Convergence B mode (denoised, according to input parameters)

Mask extension:

The mast extension (MASK) is filled with the Euclid mask projected onto the patch.

Header:

HDU MASK: header

Name

Description

Value

Keywords

XTENSION

string

BITPIX

integer

NAXIS

integer

NAXIS1

integer

NAXIS2

integer

NAXIS3

integer

PCOUNT

integer

GCOUNT

integer

WCSAXES

number of axes in World Coordinate System

integer

CRPIX1

pixel coordinate of reference point in axis1

double

CRPIX2

pixel coordinate of reference point in axis2

double

PC1_1

coordinate transformation matrix element

double

PC1_2

coordinate transformation matrix element

double

PC2_1

coordinate transformation matrix element

double

PC2_2

coordinate transformation matrix element

double

CDELT1

increment at reference point in axis1

double

CDELT2

increment at reference point in axis2

double

CUNIT1

unit of the first coordinate value

string

CUNIT2

unit of the second coordinate value

string

CTYPE1

WCS type of the first coordinate

string

CTYPE2

WCS type of the second coordinate

string

CRVAL1

value at reference point in axis1

double

CRVAL2

value at reference point in axis2

double

LONPOLE

native longitude of the pole

double

LATPOLE

native latitude of the pole

double

RADESYS

equatorial coordinate system

string

EQUINOX

equinox of celestial coordinate system

double

EXTNAME

name of this image extension

string

HDU MASK: 1 array info

Format

Number of Dimensions

Unit

ArrayInfo

-32

3

NA

HDU MASK: 2 array axes

Name

Projection Algorithm

Type

Unit

AxesList

RA

TAN

RA

deg

DEC

TAN

DEC

deg

Monte-Carlo maps

This FITS file is associated to a structure called SNRPatch (to be renamed after DR1). The patch number and the realisation number are given in the filename.

<SNRPatch format="le3.wl.2dmass.output.patchsnr" version="1.0">
  <DataContainer filestatus="PROPOSED">
    <FileName>EUC_LE3_2D-MASS-WL_PATCH0_CARTMC0_20250116T124051.125939Z_2.7.fits</FileName>
  </DataContainer>
</SNRPatch>
../../../../_images/le3.wl.2dmass.output.patchsnr.jpg

Primary HDU:

HDU PRIMARY: header

Name

Description

Value

Keywords

SIMPLE

logical

BITPIX

integer

NAXIS

integer

EXTEND

logical

SHE_SOFT

where the input catalogue is coming from

string

SHE_SEL

where the input catalogue is coming from

string

SOFTNAME

software used to create the product

string

SOFTVERS

software version

string

PROJ

projection used (e.g. TAN)

string

PWIDTH

patch width

double

PIXSIZE

pixel size

double

NITREDSH

number of iterations for reduced shear

integer

STDREDSH

std of gaussian smoothing for reduced shear

double

NITINP

number of iterations for inpainting

integer

NSCINP

number of scales for inpainting

integer

EB_CONSTRAINT

true if constraints applied in E/B mode during inpainting.

logical

ADDBORD

true if borders added for inpainting

logical

DENTYPE

denoising type

string

GAUSSSTD

std of gaussian smoothing

double

FDRVAL

false discovery rate threshold

double

NZBINS

number of redshift bins

integer

ZBINSTRAT

redshift binning strategy (equidist or equipop)

string

MCSEED

noise MC seed

integer

NRESAMPL

number of resampling

integer

BLINDING

Flag that identifies products that have been blinded for scientific analysis

string

Cube extension:

For the array in HDU (HDU= 1..N, one per redshift bin), the following keywords are specified for each HDU (EXTNAME = “KAPPA_ZBIN_n,”): Header:

HDU KAPPA_ZBIN_n: header

Name

Description

Value

Keywords

XTENSION

string

BITPIX

integer

NAXIS

integer

NAXIS1

integer

NAXIS2

integer

NAXIS3

integer

PCOUNT

integer

GCOUNT

integer

WCSAXES

number of axes in World Coordinate System

integer

CRPIX1

pixel coordinate of reference point in axis1

double

CRPIX2

pixel coordinate of reference point in axis2

double

PC1_1

coordinate transformation matrix element

double

PC1_2

coordinate transformation matrix element

double

PC2_1

coordinate transformation matrix element

double

PC2_2

coordinate transformation matrix element

double

CDELT1

increment at reference point in axis1

double

CDELT2

increment at reference point in axis2

double

CUNIT1

unit of the first coordinate value

string

CUNIT2

unit of the second coordinate value

string

CTYPE1

WCS type of the first coordinate

string

CTYPE2

WCS type of the second coordinate

string

CRVAL1

value at reference point in axis1

double

CRVAL2

value at reference point in axis2

double

LONPOLE

native longitude of the pole

double

LATPOLE

native latitude of the pole

double

RADESYS

equatorial coordinate system

string

EQUINOX

equinox of celestial coordinate system

double

EXTNAME

name of this image extension

string

ZMIN

minimum redshift of the bin

double

ZMAX

maximum redshift of the bin

double

HDU KAPPA_ZBIN_n: 1 array info

Format

Number of Dimensions

Unit

ArrayInfo

-32

3

NA

HDU KAPPA_ZBIN_n: 2 array axes

Name

Projection Algorithm

Type

Unit

AxesList

RA

TAN

RA

deg

DEC

TAN

DEC

deg

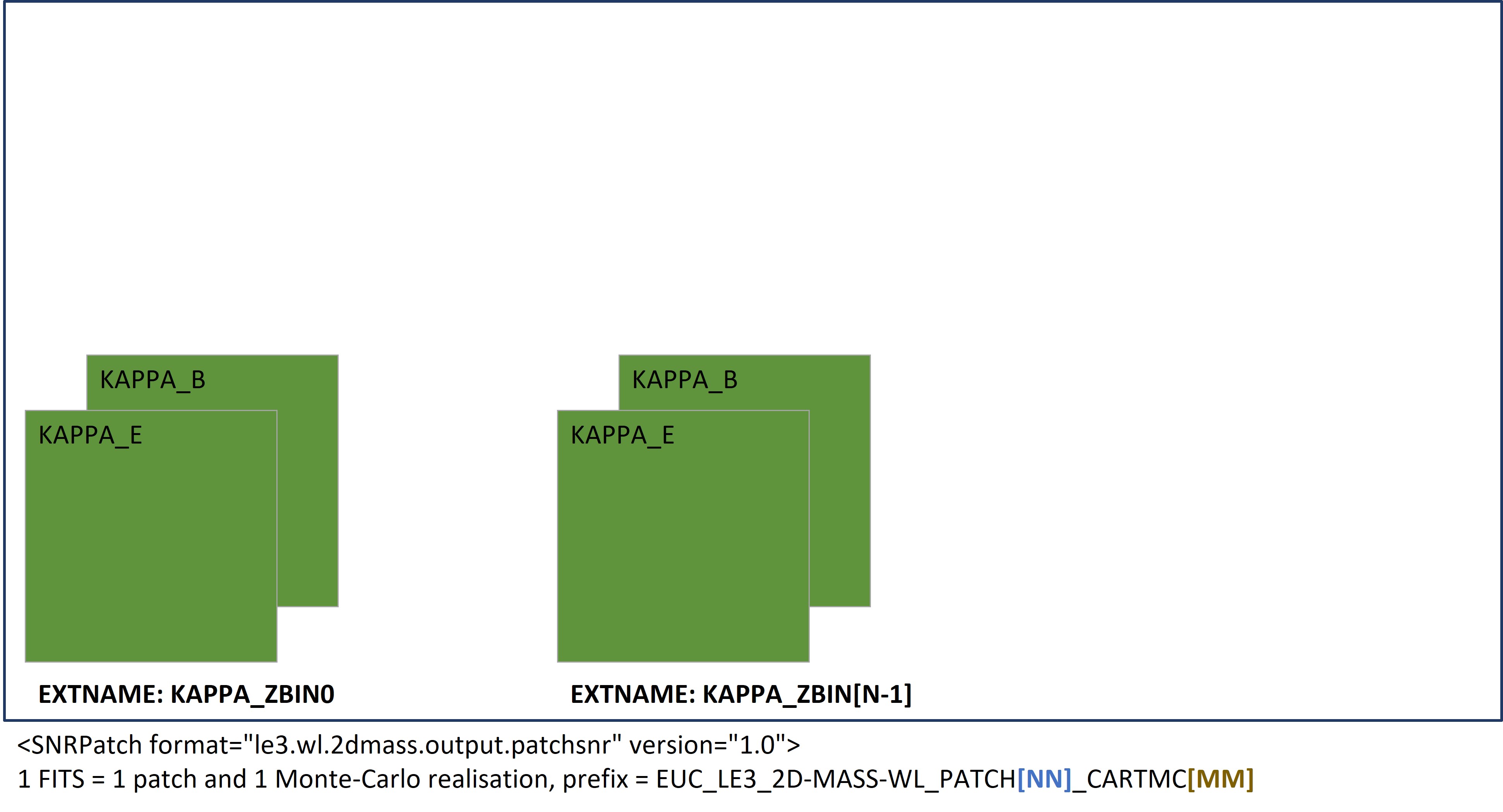

The array contains 2 images in that order:

  • Convergence E mode

  • Convergence B mode
