Output Product: E/B modes on the full sky

Metadata

Data product name

DpdTwoDMassConvergenceSphere

Data product custodian

WLTWODMASS

Name of the Schema file

euc-le3-wl-twodmass-ConvergenceSphere.xsd

Last Edited for DPDD Version

1.1

Processing Element(s) creating/using the data product

Creators:

  • LE3_2D_MASS_WL_KS

Consumers:

  • LE3_2D_MASS_WL_KS

Processing function using the data product

  • LE3_2D_MASS_WL_KS

  • Science Working Group

Proposed for inclusion in EAS/SAS

This product is proposed for inclusion in the SAS: Yes

This product is an internal product of SGS.

Data Product Elements

Header

object of type sys:genericHeader

Data

object of type wl2dmass:twoDMassCollectConvergenceSphere

QualityFlags

object of type dqc:sqfPlaceHolder

Parameters

object of type ppr:genericKeyValueParameters

Detailed Description of the Data Product

This product contains full-sky convergence maps (denoised and noisy), shear maps, the noise standard deviation maps, and Monte-Carlo realisations (computed on the sphere).

This output product contains:

  • a cube map associated to a FITS in [Shear xml tag] containing:

    • a table (one redshift bin per HDU) containing HEALPix maps for the E/B convergence modes, the total galaxy weight per pixel, the galaxy density per pixel, the noise standard deviation map (STD), the shear, and the denoised convergence;

    • the Euclid visibility mask for the output resolution.

  • a Monte-Carlo cube map per Monte-Carlo realisation associated to a FITS in [MonteCarloMap xml tag] containing:

    • a table (one redshift bin per HDU) containing HEALPix maps for the Monte-Carlo realisation of E/B convergence modes.

  • a “NResamples” field to specify the number of samples that were used to compute the STD maps [int]

  • a “McSeed” field to specify the seed of the random number generator [int]

Convergence/shear table

This FITS file is associated to a structure called Shear (to be renamed after DR1). The cluster number is given in the filename.

<Shear format="le3.wl.2dmass.output.sphereshear" version="1.0">
  <DataContainer filestatus="PROPOSED">
    <FileName>EUC_LE3_2D-MASS-WL_SPHERE_SPHCONV_20250116T124605.224235Z_2.7.fits</FileName>
  </DataContainer>
</Shear>

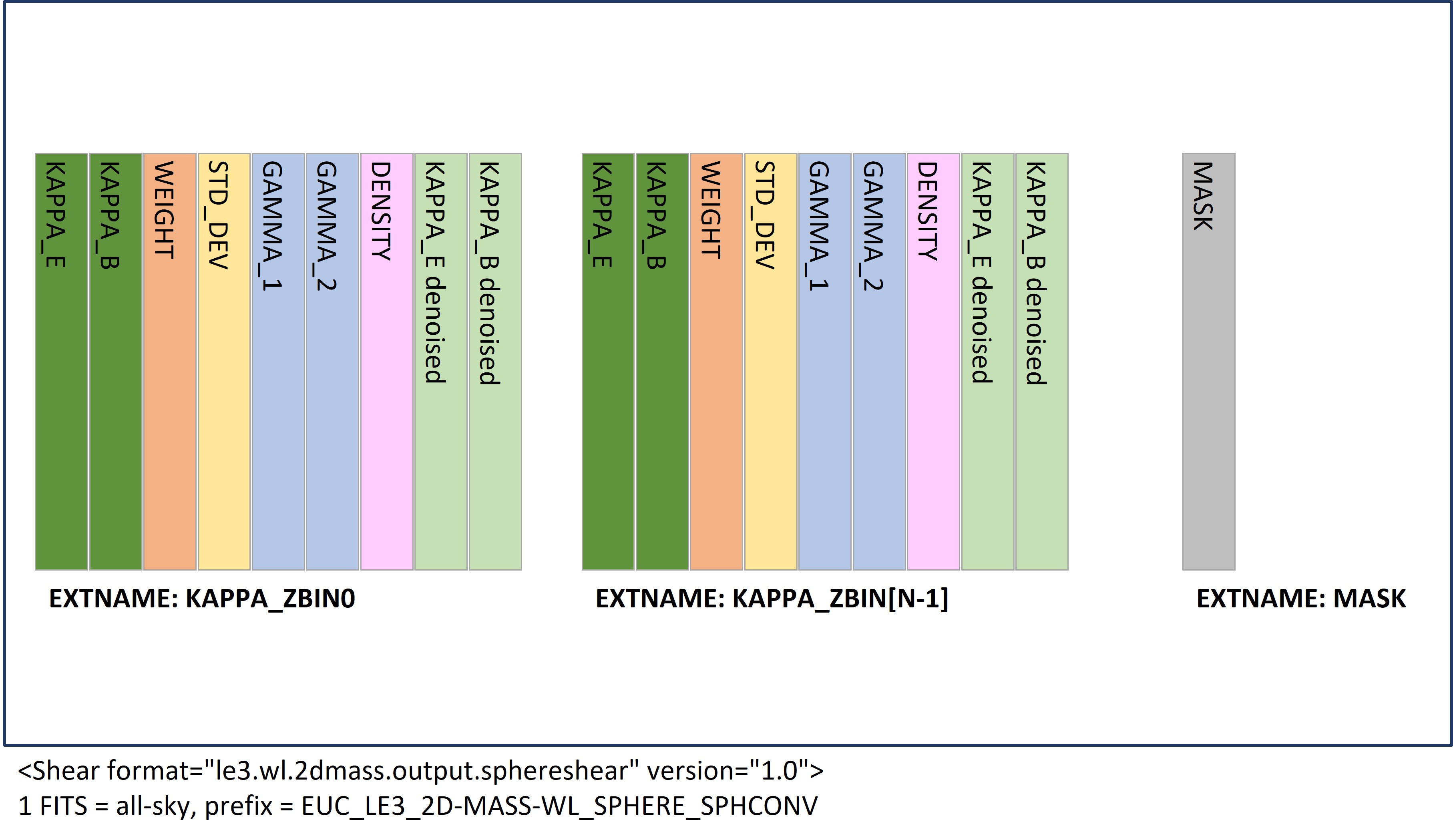

../../../../_images/le3.wl.2dmass.output.sphereshear.jpg

Primary HDU:

HDU PRIMARY: header

Name

Description

Value

Keywords

SIMPLE

logical

BITPIX

integer

NAXIS

integer

EXTEND

logical

SHE_SOFT

where the input catalogue is coming from

string

SHE_SEL

where the input catalogue is coming from

string

SOFTNAME

software used to create the product

string

SOFTVERS

software version

string

NITREDSH

number of iterations for reduced shear

integer

STDREDSH

std of gaussian smoothing for reduced shear

double

NITINP

number of iterations for inpainting

integer

NSCINP

number of scales for inpainting

integer

EB_CONSTRAINT

true if constraints applied in E/B mode during inpainting.

logical

DENTYPE

denoising type

string

GAUSSSTD

std of gaussian smoothing

double

FDRVAL

false discovery rate threshold

double

NZBINS

number of redshift bins

integer

ZBINSTRAT

redshift binning strategy (equidist or equipop)

string

MCSEED

noise MC seed

integer

MCREAL

number associated to the MC realization of the convergence map

integer

NRESAMPL

number of resampling

integer

BLINDING

Flag that identifies products that have been blinded for scientific analysis

string

Table extensions:

For the array in HDU (HDU= 1..N, one per redshift bin), the following keywords are specified for each HDU (EXTNAME = “KAPPA_ZBIN_n”).

Header:

HDU KAPPA_ZBIN_n: header

Name

Description

Value

Keywords

XTENSION

string

BITPIX

integer

NAXIS

integer

NAXIS1

integer

NAXIS2

integer

PCOUNT

integer

GCOUNT

integer

TFIELDS

number of fields in each row

integer

TTYPE1

label of field 1

string

TFORM1

data format of field 1

string

TTYPE2

label of field 2

string

TFORM2

data format of field 2

string

TTYPE3

label of field 3

string

TFORM3

data format of field 3

string

TTYPE4

label of field 4

string

TFORM4

data format of field 4

string

TTYPE5

label of field 5

string

TFORM5

data format of field 5

string

TTYPE6

label of field 6

string

TFORM6

data format of field 6

string

TTYPE7

label of field 7

string

TFORM7

data format of field 7

string

TTYPE8

label of field 8

string

TFORM8

data format of field 8

string

PIXTYPE

HEALPIX pixelisation

string

ORDERING

pixel ordering scheme: RING or NESTED

string

EXTNAME

name of this binary table extension

string

NSIDE

resolution parameter of HEALPIX

integer

FIRSTPIX

first pixel index (0 based)

integer

LASTPIX

last pixel index (0 based)

integer

INDXSCHM

indexing: IMPLICIT or EXPLICIT

string

OBJECT

sky coverage: FULLSKY or PARTIAL

string

COORDSYS

pixelisation coordinate system (C=Celestial)

string

ZMIN

minimum redshift of the bin

double

ZMAX

maximum redshift of the bin

double

Content:

HDU KAPPA_ZBIN_n: header

Name

Description

Value

Keywords

XTENSION

string

BITPIX

integer

NAXIS

integer

NAXIS1

integer

NAXIS2

integer

PCOUNT

integer

GCOUNT

integer

TFIELDS

number of fields in each row

integer

TTYPE1

label of field 1

string

TFORM1

data format of field 1

string

TTYPE2

label of field 2

string

TFORM2

data format of field 2

string

TTYPE3

label of field 3

string

TFORM3

data format of field 3

string

TTYPE4

label of field 4

string

TFORM4

data format of field 4

string

TTYPE5

label of field 5

string

TFORM5

data format of field 5

string

TTYPE6

label of field 6

string

TFORM6

data format of field 6

string

TTYPE7

label of field 7

string

TFORM7

data format of field 7

string

TTYPE8

label of field 8

string

TFORM8

data format of field 8

string

PIXTYPE

HEALPIX pixelisation

string

ORDERING

pixel ordering scheme: RING or NESTED

string

EXTNAME

name of this binary table extension

string

NSIDE

resolution parameter of HEALPIX

integer

FIRSTPIX

first pixel index (0 based)

integer

LASTPIX

last pixel index (0 based)

integer

INDXSCHM

indexing: IMPLICIT or EXPLICIT

string

OBJECT

sky coverage: FULLSKY or PARTIAL

string

COORDSYS

pixelisation coordinate system (C=Celestial)

string

ZMIN

minimum redshift of the bin

double

ZMAX

maximum redshift of the bin

double

HDU KAPPA_ZBIN_n: 8 columns table

Name

Description

Unit

Format

Columns

KAPPA_E

NA

FITS E

KAPPA_B

NA

FITS E

WEIGHT

NA

FITS E

STD_DEV

NA

FITS E

GAMMA_1

NA

FITS E

GAMMA_2

NA

FITS E

GAMMA_1_DENOISED

NA

FITS E

GAMMA_2_DENOISED

NA

FITS E

The table contains 9 columns in that order:

  • Convergence E mode

  • Convergence B mode

  • Weight map (total galaxy weight per pixel)

  • Noise standard deviation of E and B modes over all NResamples realisations

  • Shear first component

  • Shear second component

  • Density map (number of galaxies per pixel)

  • Convergence E mode (denoised, according to input parameters)

  • Convergence B mode (denoised, according to input parameters)

Mask extension:

The mast extension (MASK) is filled with the Euclid mask for the output resolution.

Header:

HDU MASK: header

Name

Description

Value

Keywords

XTENSION

string

BITPIX

integer

NAXIS

integer

NAXIS1

integer

NAXIS2

integer

PCOUNT

integer

GCOUNT

integer

TFIELDS

number of fields in each row

integer

TTYPE1

label of field 1

string

TFORM1

data format of field 1

string

PIXTYPE

HEALPIX pixelisation

string

ORDERING

pixel ordering scheme: RING or NESTED

string

EXTNAME

name of this binary table extension

string

NSIDE

resolution parameter of HEALPIX

integer

FIRSTPIX

first pixel index (0 based)

integer

LASTPIX

last pixel index (0 based)

integer

INDXSCHM

indexing: IMPLICIT or EXPLICIT

string

OBJECT

sky coverage: FULLSKY or PARTIAL

string

COORDSYS

pixelisation coordinate system (C=Celestial)

string

Content:

HDU MASK: header

Name

Description

Value

Keywords

XTENSION

string

BITPIX

integer

NAXIS

integer

NAXIS1

integer

NAXIS2

integer

PCOUNT

integer

GCOUNT

integer

TFIELDS

number of fields in each row

integer

TTYPE1

label of field 1

string

TFORM1

data format of field 1

string

PIXTYPE

HEALPIX pixelisation

string

ORDERING

pixel ordering scheme: RING or NESTED

string

EXTNAME

name of this binary table extension

string

NSIDE

resolution parameter of HEALPIX

integer

FIRSTPIX

first pixel index (0 based)

integer

LASTPIX

last pixel index (0 based)

integer

INDXSCHM

indexing: IMPLICIT or EXPLICIT

string

OBJECT

sky coverage: FULLSKY or PARTIAL

string

COORDSYS

pixelisation coordinate system (C=Celestial)

string

HDU MASK: 1 columns table

Name

Description

Unit

Format

Columns

MASK

NA

FITS E

Monte-Carlo maps

This FITS file is associated to a structure called MonteCarloMap (to be renamed after DR1). The patch number and the realisation number are given in the filename.

<MonteCarloMap format="le3.wl.2dmass.output.sphereconvergence" version="1.0">
  <DataContainer filestatus="PROPOSED">
    <FileName>EUC_LE3_2D-MASS-WL_SPHERE_SPHMC0_20250116T124504.828997Z_2.7.fits</FileName>
  </DataContainer>
</MonteCarloMap>

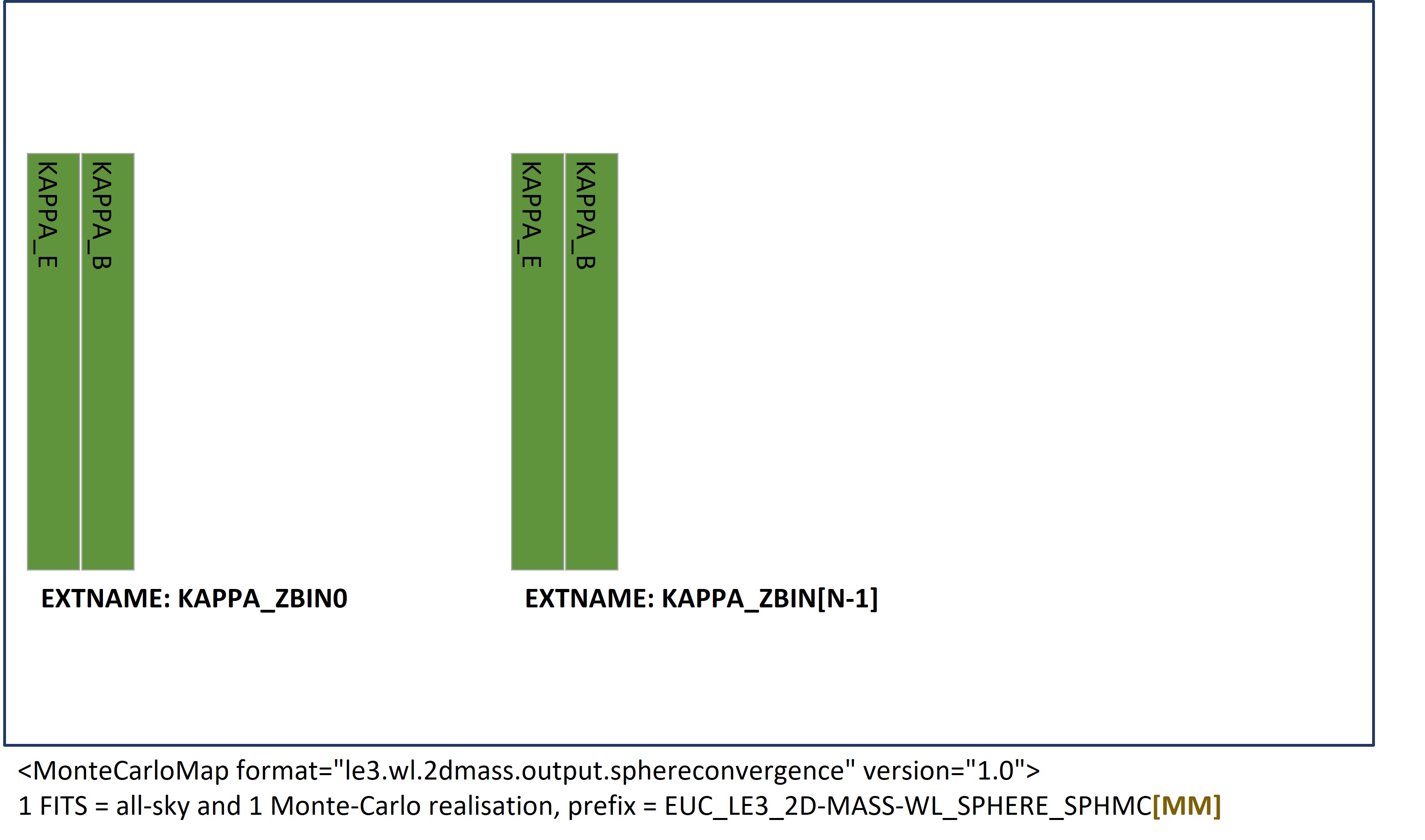

../../../../_images/le3.wl.2dmass.output.sphereconvergence.jpg

Primary HDU:

HDU PRIMARY: header

Name

Description

Value

Keywords

SIMPLE

logical

BITPIX

integer

NAXIS

integer

EXTEND

logical

SHE_SOFT

where the input catalogue is coming from

string

SHE_SEL

where the input catalogue is coming from

string

SOFTNAME

software used to create the product

string

SOFTVERS

software version

string

NITREDSH

number of iterations for reduced shear

integer

STDREDSH

std of gaussian smoothing for reduced shear

double

NITINP

number of iterations for inpainting

integer

NSCINP

number of scales for inpainting

integer

EB_CONSTRAINT

true if constraints applied in E/B mode during inpainting.

logical

DENTYPE

denoising type

string

GAUSSSTD

std of gaussian smoothing

double

FDRVAL

false discovery rate threshold

double

NZBINS

number of redshift bins

integer

ZBINSTRAT

redshift binning strategy (equidist or equipop)

string

MCSEED

noise MC seed

integer

MCREAL

number associated to the MC realization of the convergence map

integer

NRESAMPL

number of resampling

integer

BLINDING

Flag that identifies products that have been blinded for scientific analysis

string

Table extensions:

For the array in HDU (HDU= 1..N, one per redshift bin), the following keywords are specified for each HDU (EXTNAME = “KAPPA_ZBIN_n”):

Header:

HDU KAPPA_ZBIN_n: header

Name

Description

Value

Keywords

XTENSION

string

BITPIX

integer

NAXIS

integer

NAXIS1

integer

NAXIS2

integer

PCOUNT

integer

GCOUNT

integer

TFIELDS

number of fields in each row

integer

TTYPE1

label of field 1

string

TFORM1

data format of field 1

string

TTYPE2

label of field 2

string

TFORM2

data format of field 2

string

PIXTYPE

HEALPIX pixelisation

string

ORDERING

pixel ordering scheme: RING or NESTED

string

EXTNAME

name of this binary table extension

string

NSIDE

resolution parameter of HEALPIX

integer

FIRSTPIX

first pixel index (0 based)

integer

LASTPIX

last pixel index (0 based)

integer

INDXSCHM

indexing: IMPLICIT or EXPLICIT

string

OBJECT

sky coverage: FULLSKY or PARTIAL

string

COORDSYS

pixelisation coordinate system (C=Celestial)

string

ZMIN

minimum redshift of the bin

double

ZMAX

maximum redshift of the bin

double

HDU KAPPA_ZBIN_n: 2 columns table

Name

Description

Unit

Format

Columns

KAPPA_E

NA

FITS E

KAPPA_B

NA

FITS E

The table contains 2 columns in that order:

  • Convergence E mode

  • Convergence B mode
